Ultrasonic tsheb nres tsheb tswj kev tswj rau qhov chaw nres tsheb thiab

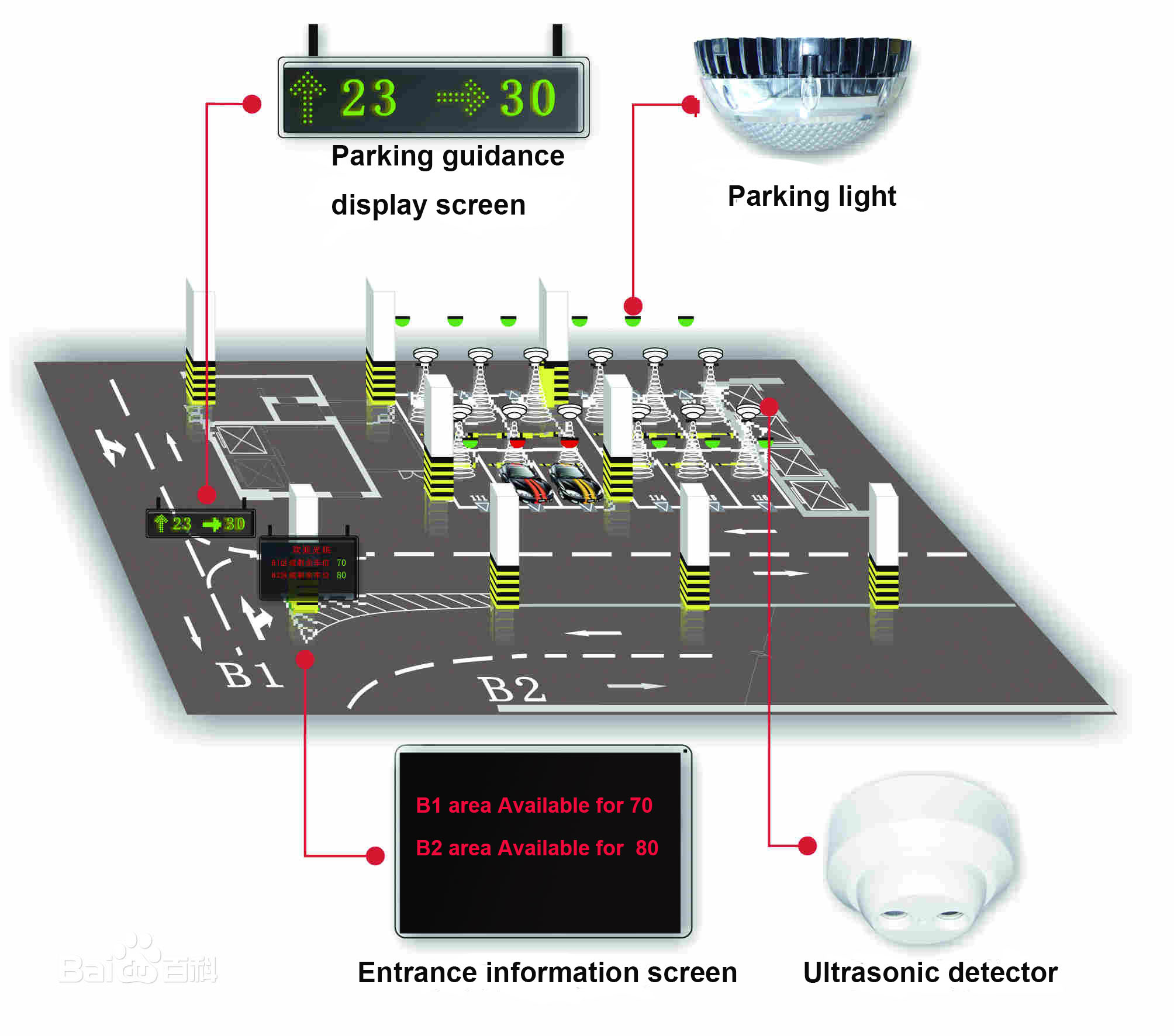

Ultrasonic tsheb nres tsheb khiav kev tswj kev tswj Qhov kev tsim los siv rau kev qhia, kev tsav tsheb tsheb thiab muab cov lus qhia txog sijhawm nres tsheb rau cov neeg tsav tsheb. Ntau lub nroog raug kev txom nyem los ntawm qhov tsis muaj chaw nres tsheb los yog muaj tsheb loj nyob hauv kev tshawb nrhiav chaw nres tsheb, tsis hais hauv lub tshav dav hlau, chaw ua haujlwm, Lub khw muag khoom, Lub Hoobkas, Tsoomfwv tsev haujlwm lossis Kev Lag Luam, thiab lwm yam.
Cov Txheej Txheem Zog:
1) . Ultrasonic 2 hauv 1 Nres Tsheb Nres Nres.
Ultrasonic ntes tsev nruab nyob rau hauv pem hauv ntej ntawm chaw nres tsheb chaw mus saib xyuas lub tsheb thiab muab cov lus qhia txog real-time rau PGIS system.
Ua rau High brightness muag pom lub teeb pom kev zoo, 2 kev ua haujlwm hauv 1 khoom, Liab Xim hais tias qhov chaw nyob, Green xim qhia tau hais tias muaj. Txuag cov khoom siv thiab nqi tsim kho rau koj.
Nws tsuas yog siv nyob rau hauv chaw nres tsheb sab hauv chaw nres tsheb ciav hlau. (Qhov chaw nres tsheb sab nraud thiab cov chaw nres tsheb cov chaw nres tsheb kuj tseem muaj).
Chaw Nres Tsheb Nres Ntes muaj 2 ntu: Detector thiab Pedestal (Dawb).
Kev khiav lag luam | 18-30V, Pom zoo: 24V | |
Fais fab noj | 0.5W | |
Txoj kev khiav haujlwm | Ultrasonic xab | |
Nrhiav ntau | 50cm-420cm | |
Kev sib txuas lus | RS485 | |
Dimension | Φ130 * 80mm | |
Kev khiav hauj lwm kub | -20 rau + 50 degree | |
Tam Sim No | Lub teeb liab: 65mA, | Ntsuab teeb: 56mA |
Daim ntawv thov | Sab hauv tsev | |
Mounting | Hoisting | |
Uplink | Uplink rau thaj tsam Controller RCM tus qauv series | |
2) . Nkag Mus Siv Kev Taw Qhia Zaub Tuag
Ultrasonic tsheb nres nres kev taw qhia Zaub Screen tso rau ntawm lub ntsiab nkag ntawm chaw nres tsheb chaw los qhia cov tsav tsheb muaj ntau ntau hauv txhua lub tsev. Thiab yuav coj tus tsav tsheb mus raws sijhawm. Los ntawm txoj kev no, tsis txhob muaj tsheb ciav hlau ntawm qhov chaw nres tsheb nkag thiab nce qeeb ntawm qhov chaw nres tsheb. Feem ntau, qhov chaw nres tsheb ntawm txoj kab kev taw qhia tau muab tso rau ntawm lub qhov rooj. Nws txais kev tawm sab nrauv, kuj tuaj yeem pom tseeb hauv lub hnub.
Kev Nkag Mus Hauv Cov Chaw Taw Tseg Lub Teeb Tsav Txheej Txheem Lub Teeb Tsawg Lub Teeb Tsav Txhaum Lub Teeb Tsawg Cov dej khov thiab cov hlua tes tsis sib haum
| Lub hwj chim | AC220V ± 20% / 1A |
| Qhov chaw sib txuas lus | RS485 |
| Fais fab noj | Txhua txheej yog txog 20W |
| Kev khiav hauj lwm kub | -20 ~ + 65 degree |
| LED teeb matrix | 16 * 32, P10 ntsuab dot matrix |
| Tus nqi sib txuas lus | 9600bps |
| Ntaus loj | 55 * 125 hli |
| Dimension | 1700 * 500 * 150mm (Max 4 txheej tso saib , yog loj dua, lub plhaub yuav tsum tau muab kho) |
3). Hoist Parking Guidance Display Screen.
Hoisting Parking Guidance Screen Npo Cov chaw nres tsheb sab hauv tsev cov kev sib tshuam losyog ntawm qhov chaw yuav ua rau tus tsav tsheb qhia sai thiab ceev ceev cov tsheb, tsis txhob tawm tsam chaw nres tsheb thiab muaj tsheb nqaj hlau. Ua rau kev siv qhov chaw nres tsheb ntau qhov ua tau zoo.
Lub hwj chim | AC220V ± 20% | |||
Qhov chaw sib txuas lus | RS485 | |||
Fais fab noj | Tib qho kev coj <> | |||
Kev khiav hauj lwm kub | -20 ~ + 65 degree | |||
Ua hauj lwm av noo | 10-90% | |||
LED teeb matrix | 16 * 32, ntsuab dot matrix | |||
Ntaus loj | 55 * 125 hli | |||
Dimension | 385 * 230 * 80mm rau 1 (los yog 2 lossis 3) | |||
kev taw qhia zaub nrog lub thawv rau lub teeb | ||||
4). Management Software
Siv ntau daim graphic daim ntawv thov raws li SQL database software nrog intuitive UI. Yooj yim zog lag luam & Ua tiav zog.
