COMA Tsheb Nres Tsheb Kev Cob Qhia Ultrasonic Sensor
Tsheb Nres Tsheb Txheej Txheem Kev Tshawb Fawb Cheeb Tsam:
1) . Ultrasonic 2 hauv 1 Nres Tsheb Nres Nres.

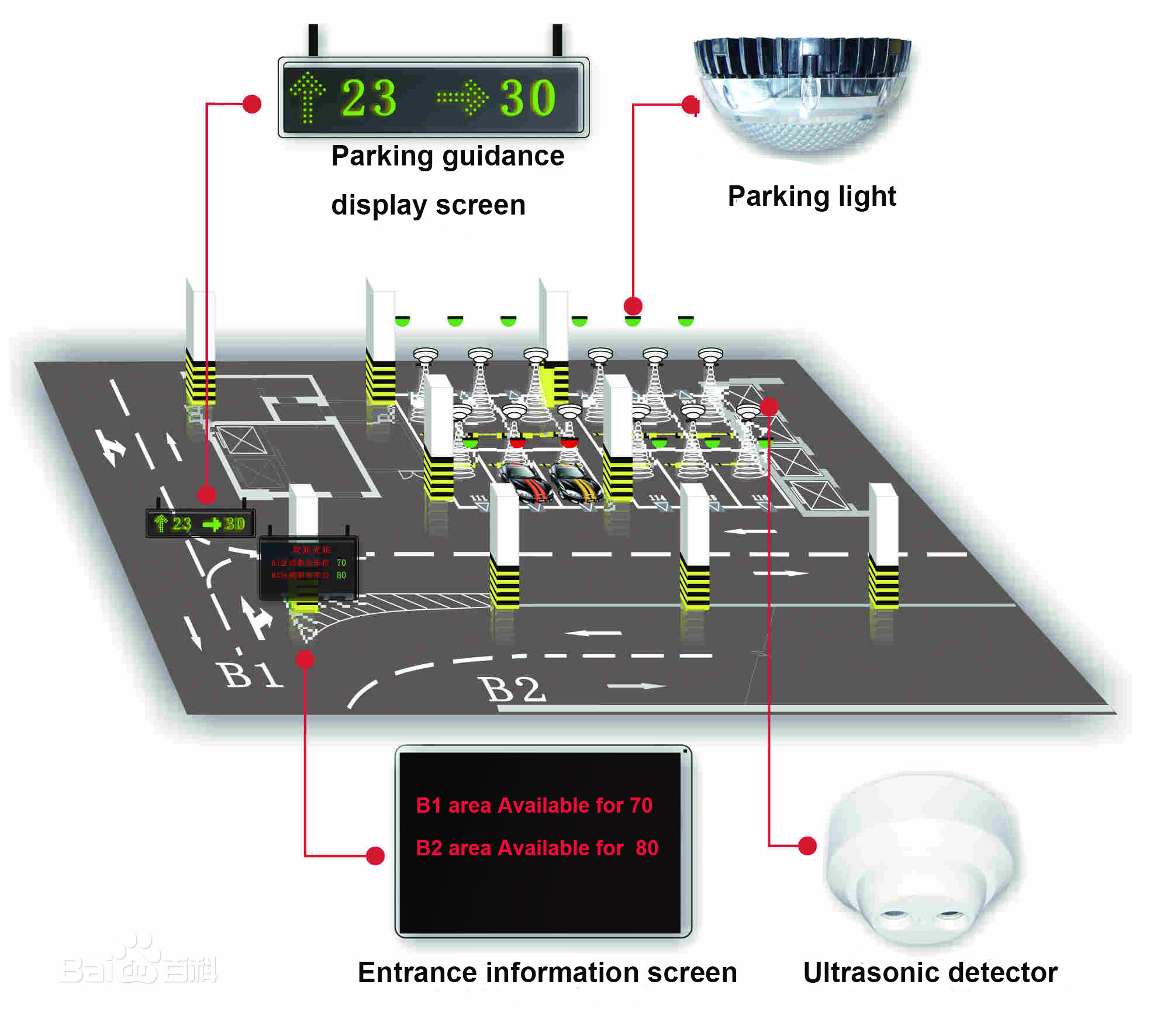

Ultrasonic nrhiav tsev nruab ntawm lub pem hauv ntej ntawm qhov chaw nres tsheb los mus saib xyuas muaj tsheb thiab muab cov lus qhia txog real-time rau PGIS system.
Ua rau High brightness muag pom lub teeb pom kev zoo, 2 kev ua haujlwm hauv 1 khoom, Liab Xim hais tias qhov chaw nyob, Green xim qhia tau hais tias muaj. Txuag cov khoom siv thiab nqi tsim kho rau koj.
Nws tsuas yog siv nyob rau hauv chaw nres tsheb sab hauv chaw nres tsheb ciav hlau. (Qhov chaw nres tsheb sab nraud thiab cov chaw nres tsheb cov chaw nres tsheb kuj tseem muaj).
Chaw Nres Tsheb Nres Ntes muaj 2 ntu: Detector thiab Pedestal ( Dawb ) .
Kev khiav lag luam | 18-30V, Pom zoo: 24V | |
Fais fab noj | 0.5W | |
Txoj kev khiav haujlwm | Ultrasonic xab | |
Nrhiav ntau | 50cm-420cm | |
Kev sib txuas lus | RS485 | |
Dimension | Φ130 * 80mm | |
Kev khiav hauj lwm kub | -20 rau + 50 degree | |
Tam Sim No | Lub teeb liab: 65mA, | Ntsuab teeb: 56mA |
Daim ntawv thov | Sab hauv tsev | |
Mounting | Hoisting | |
Uplink | Uplink rau thaj tsam Controller RCM tus qauv series | |
2). Cheeb Tsam Thaj Tsam Nruab Nrab (RCM)
Cheeb Tsam Thaj Tsam Nruab Nrab yog txheej txheej thib peb ntawm Peb-Txheej Network nyob hauv Nres Tsheb Nruab Nrab Lus Qhia (PGIS), uas ua haujlwm tseem ceeb hauv kev ua kom lub cev muaj kev ruaj ntseg, kev cia siab thiab kev ua haujlwm. RCM nqes txuas Chaw nres tsheb ntes, Vijtsam zaub, Kev taw qhia Xub, thiab lwm yam. Nws tuaj yeem tswj kev siv khoom 0-64pcs (0 ~ 64pcs ntes, 0-16pcs LED zaub). Cov voj voog tsom xyuas cov xwm txheej ntawm cov khoom kuaj thiab xa cov ntaub ntawv ntsig txog SCM.
3). Tshooj Xws Li Tus Zauv (SCM)
Tshooj Xws Li Tus Zauv yog siv los sau cov ntaub ntawv ntawm cheeb tsam Tus Thawj Coj thiab xa cov ntaub ntawv rau Master Controller. SCM yog txheej thib ob ntawm Kab Zej Zog (Three-Layer Network) nyob hauv Nres Tsheb Qhia Txog Kev Taw Qhia (PGIS). Nws tuaj yeem tswj 8pcs Cheeb Tsam Chaw Tshaj Xo .
4). Kev Tshawb Xyuas Kev Qiv Siab ( G CM)
Kev Tshawb Xyuas Kev Tshawb Xyuas Module yog nruab ntawm chav tswj kev tswj, siv lub tshuab computer embedded. Nws yog thawj txheej ntawm Peb-txheej network hauv kev qhia txog kev ua haujlwm ntawm chaw nres tsheb, GCM yuav ua tiav tag nrho cov khoom siv tswj hwm, cov ntaub ntawv khaws, kev muab thiab muab. Kev Tshaj Tawm Tsav Master Controller tuaj yeem ua lag luam khiav ntawm nws tus kheej. Nws tuaj yeem tswj 16pcs Section Module Module.
Cov ntaub ntawv Collector yog pab raws li tus choj commenting center processor rau Ultrasonic sensors thiab LED Display. Nws xav txog cov ntaub ntawv qhia txog kev lag luam thiab kev hloov tsheb mus rau cov chaw nruab nrab thiab tseem yuav pab hloov tau cov ntaub ntawv los ntawm cov chaw ua haujlwm rau LED zaub.
COMA muab kev Ultrasonic Sensor Tsheb nres tsheb cob qhia System rau cov neeg muas zaub.
