Peb CM series tripod turnstiles sawv cev rau txoj hauv kev zoo thiab nyab xeeb los tiv thaiv koj thaj chaw. Lawv yog siv nyob rau hauv ntau yam sab hauv tsev & sab nraum zoov daim ntaub ntawv. Lawv haum zoo kawg nkaus li kev xaiv nyiaj txiag hauv cov tsev ua haujlwm thiab lwm yam kev siv.
Nta
- SUS304 stainless hlau robust txee nrog zoo nkauj qhov chaw vuam thiab polishing thiab robust caj npab los ua ke
- Bi-kev taw qhia tripod turnstile nrog caj npab tso siab rau kev ua kom hluav taws, tsis thaws thiab thaiv txoj kev taug kev
- LED pictogram rau intuitive neeg siv kev paub thiab high throughput nyob rau hauv ob qho tib si qhia
- High quality ntawm tus nqi pheej yig
- Kev siv hluav taws xob tsawg
- Ntau yam ntawm accessories
- Yooj yim thiab yooj yim installation txheej txheem thiab tswj thiab saib xyuas
- Tiv thaiv los ntawm kev tiv thaiv - rov qab tig cov cuab yeej ntawm 60℃kev sib hloov
- Mechanism nrog shock absorber / damper kom ua haujlwm ntsiag to
- Industrial tsav board nrog lub sijhawm ua haujlwm ntev
Specifications
|
Lub zog xav tau |
AC110V / 220V, 50 / 60Hz |
|
|
Kev siv fais fab |
Pib |
73W |
|
Standby |
20W |
|
|
Xauv |
63W |
|
|
Ua haujlwm kub |
-28℃- 60 degree |
|
|
Ua haujlwm av noo |
5%-80% |
|
|
Ua haujlwm ib puag ncig |
Sab Hauv Tsev / Sab nraum zoov (yog tias muaj chaw nyob) |
|
|
Ceev ntawm throughput |
RFID |
Ntau tshaj 30 / feeb |
|
Ntiv tes |
Ntau tshaj 25 / feeb |
|
|
Txoj kab dav (mm) |
550 |
|
|

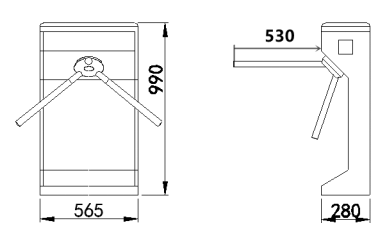

Qhov Loj (mm) |
L=565, W=280, H=980 |
|
|
Dimension nrog packing (mm) |
L=680, W=380, H=1090 |
|
|
Net nyhav (kg) |
50 |
|
|
Nyhav nrog packing (kg) |
58 |
|
|
LED qhov taw qhia |
Y |
|
|
Cov khoom siv txee |
SUS304 Stainless hlau |
|
|
Barrier khoom |
SUS304 Stainless hlau |
|
|
Input interface |
RS485 / Qhuav Contact / Relay / DC12V |
|
|
Barrier txav |
Kev sib hloov |
|
|
Hom xwm ceev |
Y |
|
|
Qib kev ruaj ntseg |
Nruab nrab |
|
|
Lub voj voog nruab nrab ntawm kev ua tsis tiav (MCBF) |
5 lab |
|
|
Options/Accessories |
Counter, SUS316 Txee thiab lub hau, Chaw taws teeb tswj, Nkag mus tswj |
|
|
Tsav Variant |
Fully auto/Semi-auto |
|
|
Vaj Thickness |
1.5 * 1.2mm (Sab saum toj * Tsev) |
|
|
Kev ntsuas ntsuas |
IP54 |
|
Qhov Loj (mm)
